In automated assembly production lines, the automatic feeding of large-sized and heavy-weight components has always been a challenge in the production process. Traditional flat flexible vibratory bowl feeders are more suitable for small precision parts. When faced with large-volume, heavy-weight workpieces, they often encounter a series of problems such as insufficient load-bearing capacity, difficulty in adjusting material posture, feeding jams and pile-ups, long changeover times, and interference between processes, directly reducing the production efficiency of the entire line. Danikor's ring-type feeding bowl (rotary vibratory bowl feeder) is designed to address the pain points of feeding large and heavy materials, creating a visual flexible feeding solution that fills the application gaps of traditional flexible feeding equipment.

I. Existing Pain Points in Automated Feeding of Large and Heavy Materials

Traditional flat flexible vibratory bowl feeders are mostly used for feeding small parts and expose many limitations under large and heavy workpiece conditions:

Limited load-bearing performance: The load limit is not high, making it difficult to stably run large-volume, heavy-weight workpieces. Equipment shaking and material displacement occur frequently;

Small material compatibility range: Thick metal parts, irregular injection-molded parts, and easily tangled soft rubber parts are difficult to scatter and align. Material stacking and jamming problems occur frequently;

Low product changeover efficiency: When switching production materials, manual cleaning of the bowl surface is required. The operation is cumbersome and not conducive to multi-variety mixed-line production;

Mutual process interference: Replenishing and loading materials cannot be carried out simultaneously with robot picking. Upstream and downstream processes wait for each other, restricting the overall takt time of the production line.

In response to the above industry situation, Danikor's ring-type feeding bowl has been specifically optimized in structure and control logic, creating a stable and reliable visual flexible feeding system for large and heavy components.

II. Working Logic of Danikor's Ring-Type Feeding Bowl

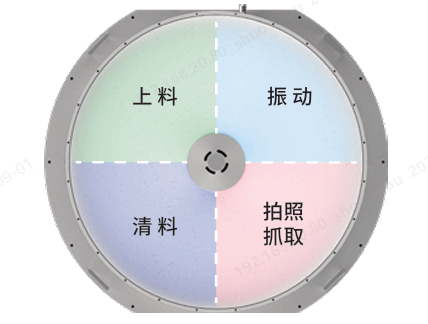

The equipment bowl surface is divided into four independent functional zones: loading zone, vibration zone, photographing and picking zone, and cleaning zone. The entire feeding process runs automatically in a closed loop:

Materials are loaded into the hopper and automatically replenished by the vibration mechanism, conveying workpieces to the ring-type bowl surface;

The rotary table performs rotational motion, combined with vibration actions to disrupt stacked materials, loosen workpieces, and continuously adjust part placement posture;

A vision camera photographs and inspects the materials on the bowl surface, identifies workpieces with qualified posture, and transmits their position coordinates to the collaborative robot;

The robot obtains the positioning information to pick the workpiece and transfer it to the assembly process; parts with unqualified posture follow the rotary table in a cycle and undergo vibration posture adjustment again.

The equipment achieves synchronous sharing of multiple zones. Loading and replenishing materials and visual picking processes do not interfere with each other, ensuring uninterrupted continuous production on the line.

III. Three Core Product Advantages of the Ring-Type Feeding Bowl

1. Strong Load-Bearing Capacity, Suitable for Large-Volume and Heavy-Weight Materials

Designed specifically for large workpiece conditions, the material adaptation range is: size 1–300mm, weight 1–300g. It is compatible with workpieces of various materials including metal, plastic, glass, ceramic, wood, and electronic components.

Metal workpieces: large-sized stamped parts, machined heavy components;

Plastic workpieces: complex and irregular injection-molded housings, various structural parts;

Special material workpieces: rubber and soft rubber parts that are easily deformed and entangled with each other.

It effectively improves the industry shortcomings of ordinary flexible vibratory bowl feeders, such as insufficient load capacity and difficulty in conveying large and heavy parts.

2. Flexible Changeover, Fast Cleaning and Switching for Multi-Variety Materials

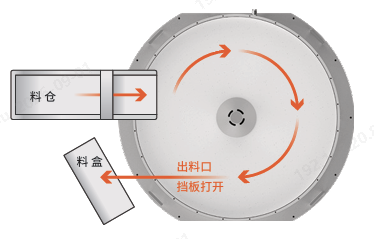

Equipped with an independent cleaning mechanism, when switching production materials, the discharge baffle is opened and materials in the bowl can be directly discharged into the material box, eliminating the need for manual cleaning of the bowl surface. One piece of equipment can adapt to the production of multiple types of components, shortening product changeover downtime. It is highly suitable for flexible production lines with multiple categories and small batches.

3. Efficient Collaborative Control, Raising Overall Feeding Takt Time

The loading zone, vibration zone, photographing and picking zone, and cleaning zone are independent, with multiple zones operating synchronously. Material replenishment, material scattering and posture adjustment, visual recognition, and robot picking can run in parallel without interfering with each other.

The control system supports flexible configuration of action operation logic. Parameters for action group processes such as rotation, oscillation, and vibration can be freely set to match the feeding process of different materials as needed, adapting to various automated assembly solutions.

IV. Main Application Scenarios

Danikor's ring-type feeding bowl is widely used in industries such as automotive parts assembly, home appliance assembly, new energy component manufacturing, and 3C structural part processing, serving various flexible feeding scenarios for large and irregular workpieces. Typical workpieces include automotive plastic housings, metal stamped brackets, rubber and plastic seals, large connectors, and plastic structural parts. The equipment can be combined with collaborative robots and vision systems to form a complete flexible feeding workstation, seamlessly connecting with downstream processes such as tightening, assembly, and inspection.

As manufacturing component specifications continue to increase, traditional small flexible vibratory bowl feeders can hardly cover the feeding needs of large and heavy workpieces. Relying on its three major features—high load-bearing capacity, rapid changeover capability, and zone-based collaborative control—Danikor's ring-type feeding bowl solves real-world problems such as chaotic posture of large workpieces, unstable feeding, and cumbersome changeovers. It provides a feasible solution for automated feeding of large and heavy parts in factories, supporting the automation upgrade of production lines.
