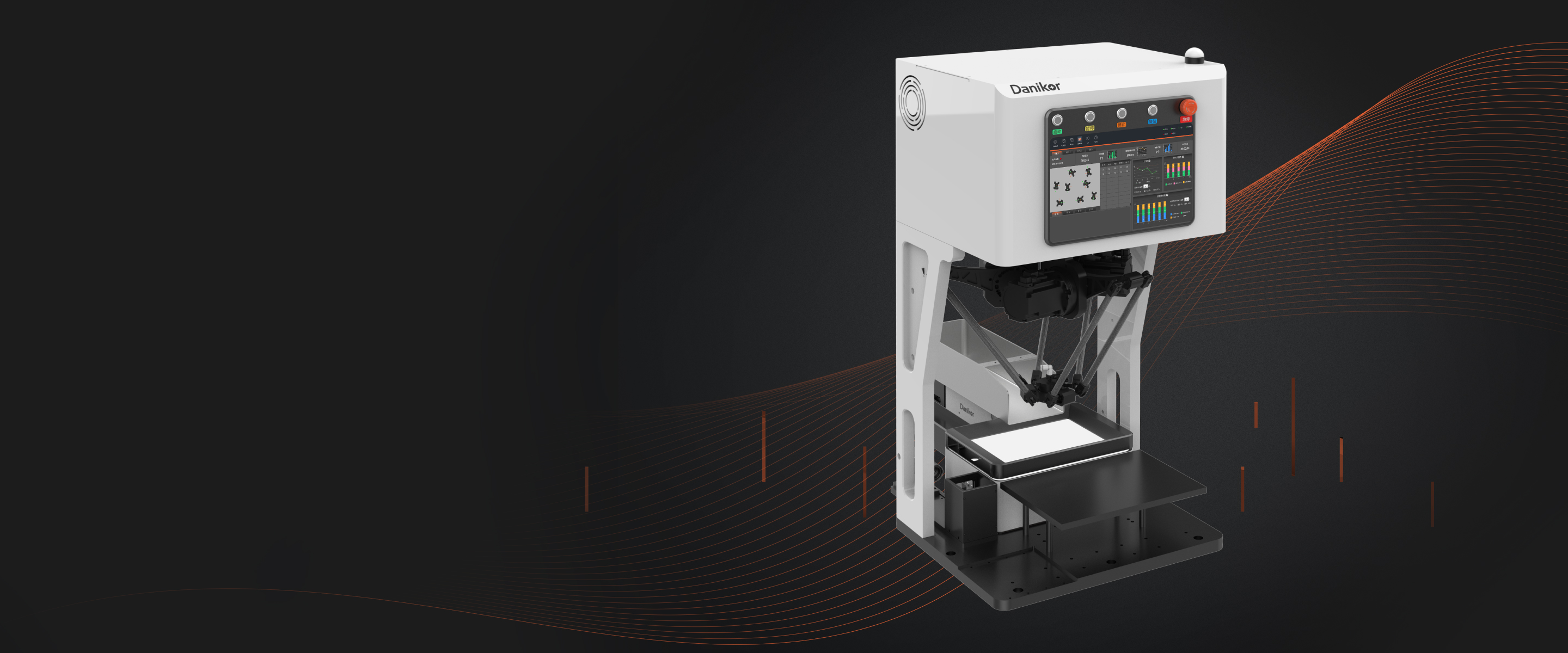

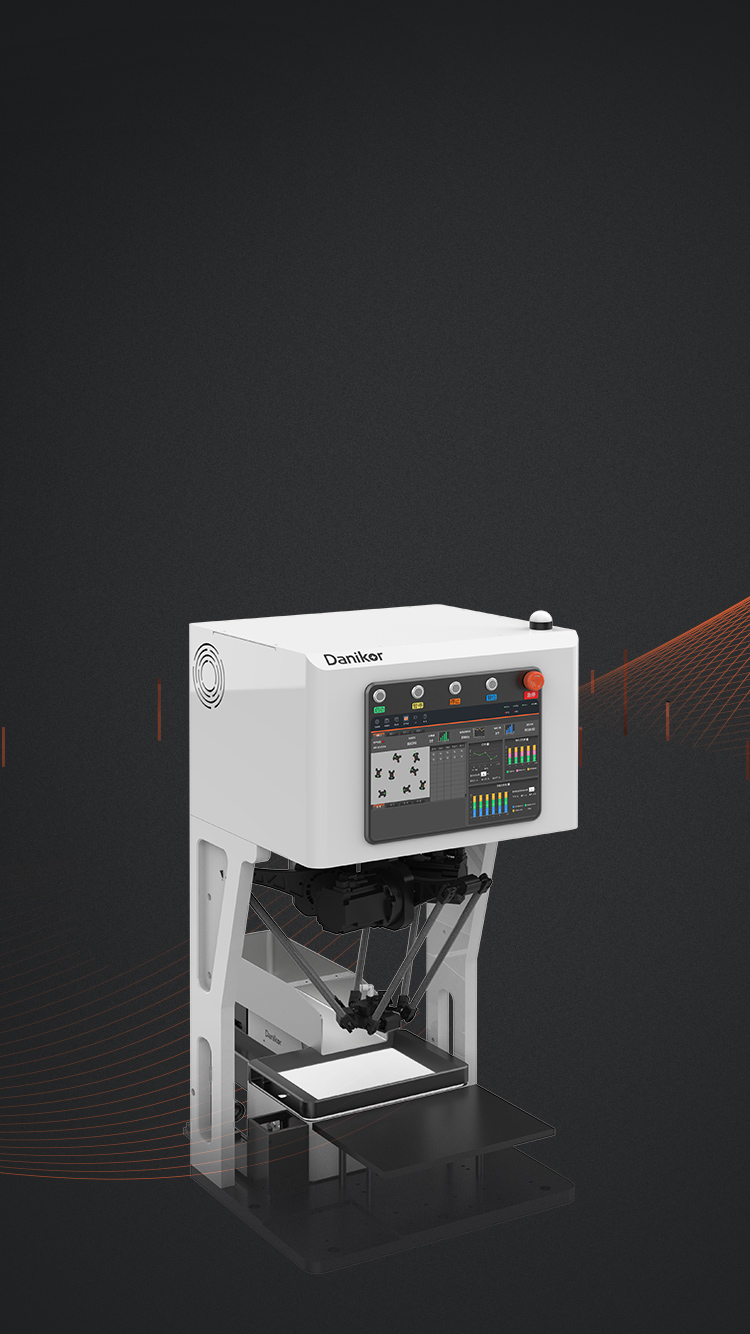

Multi Feeding All

Designed for smart production lines with multiple specifications and high takt rates. The system deeply integrates parallel robots, intelligent vision, and vibratory feeders to achieve high-speed, high-precision picking and placing. With a highly integrated system design and industrial- grade reliability, it continuously drives dual advancements in production line efficiency and flexibility.

Request a Quote

Product advantages

Faster

60 pcs/min high-speed feeding

Significantly increases cycle time per station, unlocks production line potential, and drives continuous breakthrough in output.

More Accurate

±0.1 mm system application accuracy

Stable and consistent picking and placing ensures assembly consistency, providing reliable assurance for products.

Simpler

Modular standard structure design

Modular structure enables easier maintenance and greater flexibility for expansion, reducing long-term operation and maintenance costs and time investment.

Easier to Use

Universal vision software system

Plug-and-play, supports quick changeover and flexible deployment. Different application scenarios can be matched with corresponding modes to achieve high flexibility in production.

Parameters

Model	MTA-380-U25L/F-B
Dimensions	502(854)404890mm
Delta robot arm span	Φ380mm
Delta robot Z-axis	110mm
Delta robot R-axis	±360°
Delta robot payload	50g
Cycle time	Single camera 70pcs/min / Dual camera 50pcs/min
AccurSingle camera+0.5mm / Dual camera±0.1mm
Power supply	AC 220V
Rated power	800W
Input air pressure	0.6MPa
Air inlet pipe diameter	6mm
Communication method	I/O NPN
Multi Feeder	Standard U25 G3，disc inner dimensions 211159mm / Side-lit disc (optional), disc inner dimensions 190138mm
Discharging area	240*180mm
Main camera	Danikor intelligent camera1200W
Flying camera (optional)	Hikvision industrial camera 130W/500W
Hopper (optional)	􏚳L Linear vibratory hopper

Releated Cases

Communications Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C Electronics Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
