General Screwdrivers Module Series

Torque range：0.03-200Nm

Single & multi spindle automatic screwdrivers completely automate the screw driving process along an manufacturing assembly line when mounted to third party robotic arms and positioning systems. From our automatic screwdriver which seamlessly integrates into low-payload robotic arm assemblies, to our high-torque, which is capable of an 200 Nm torque capacity, and everything in between, we engineer the most dynamic and versatile automated screw driving systems in the assembly line automation industry.

Request a Quote

Product Advantages

Reliable performance

Cylinder pressure adjustment ensures more reliable downforce regulation.

Structural optimization provides more stable screw suction pipe support, along with compatibility for more optional functions to adapt to various complex working conditions.

Flexible and convenient

The module can be installed from the front or the back, which is suitable for various field conditions.

The vacuum module The vacuum module uses a large capacity vacuum filter to extend the maintenance cycle and provide a stable vacuum value. also provide a stable vacuum value.

Small size and large energy

The structure of the module body and the nozzle is improved, the size is shortened and the weight is reduced.

The external spring is cancelled to reduce the maintenance of wearing parts.

The 12Nm lightweight series with a lower own weight can be adapted to the use of 􏚶Kg collaborative robots.

Simplified structure and wider application

The torque coverage range is expanded to 200 Nm.

The maximum cap diameter of the screw is expanded to 27mm.

The interference avoidance stroke is extended to 300mm.

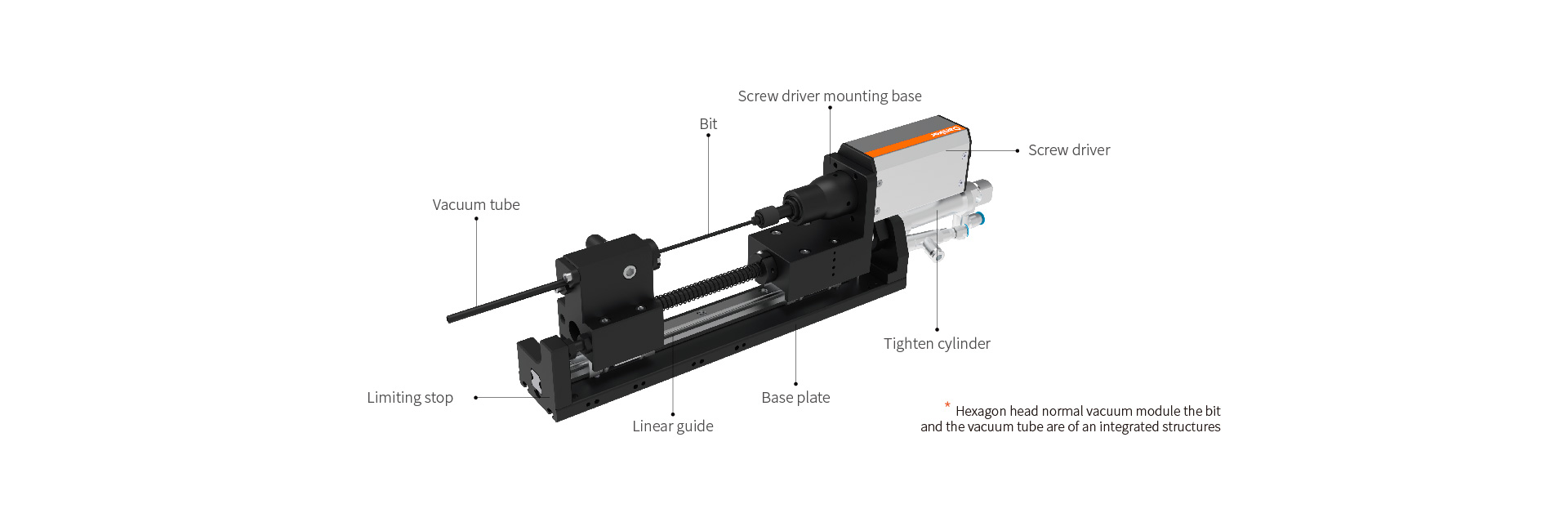

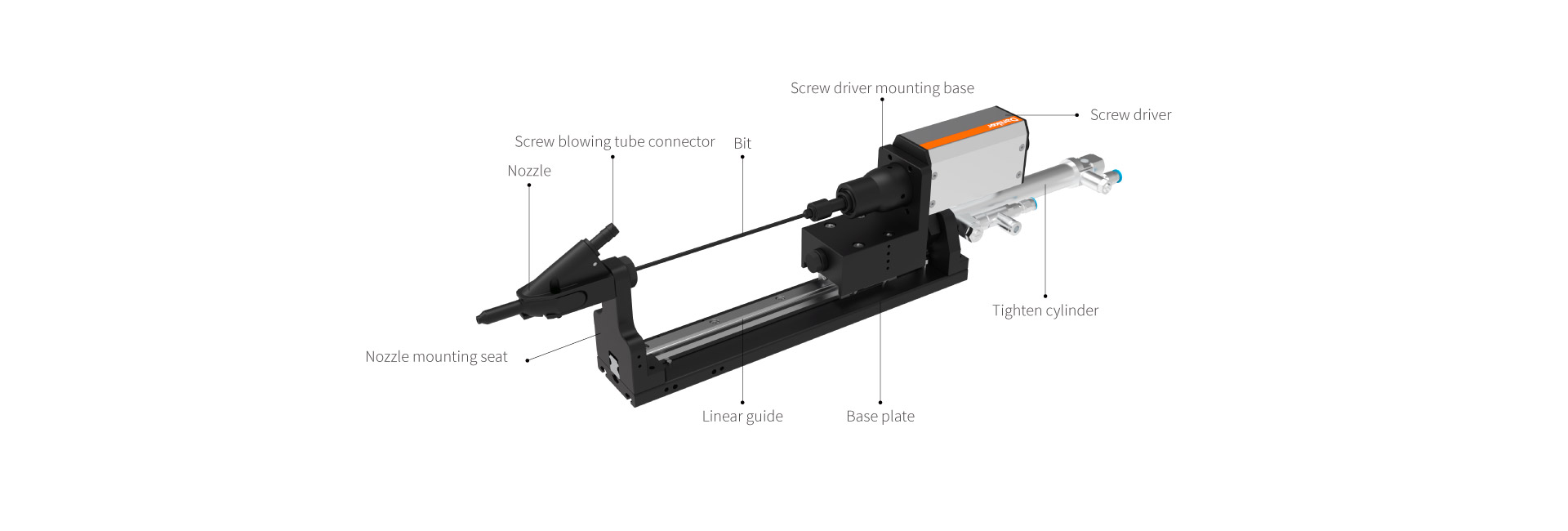

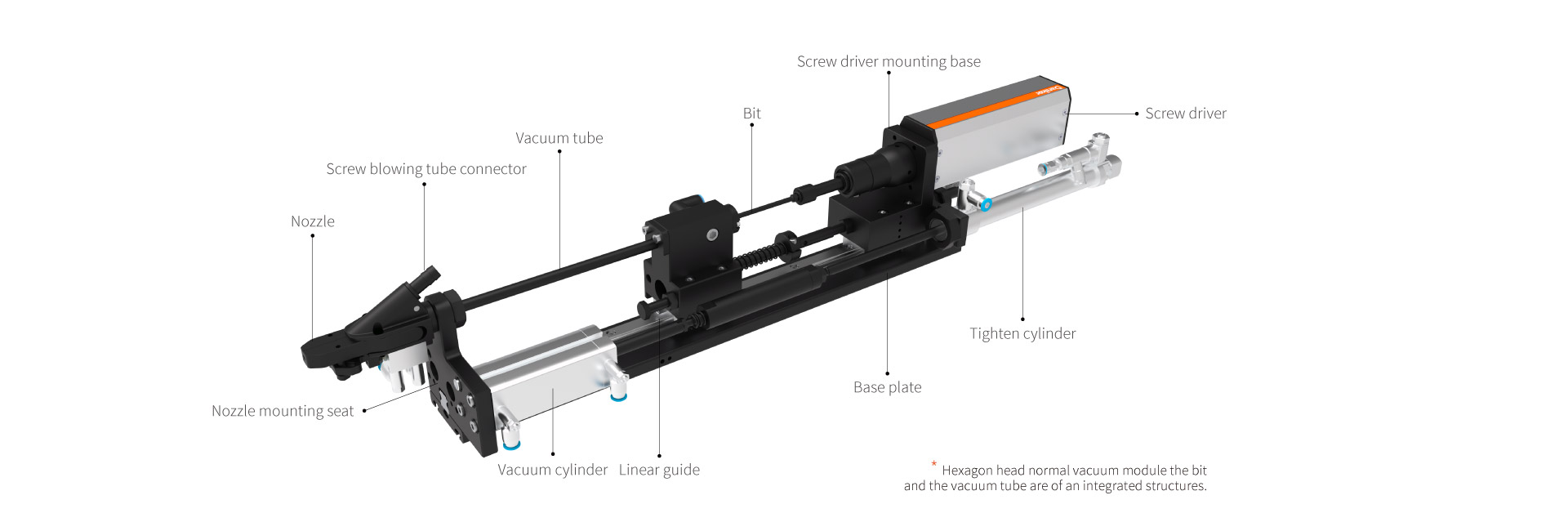

Product Structure

Product Parameters

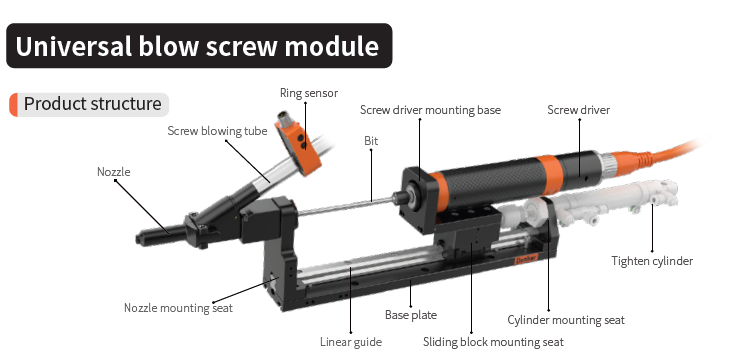

Traditional blow screw module system parameters

Screw type	Nozzle type	Weight (excluding screw drivers and cables)/kg	Maximum cap diameter/mm	Torque range /Nm
Standard/Combination screw	Normal	3.5~3.9	4~15	0.3~20
Standard/Combination screw	Swivel Arm	3~3.3
Hexagon head	Normal	3.7~4.5
Hexagon head	Swivel Arm	3~4.5

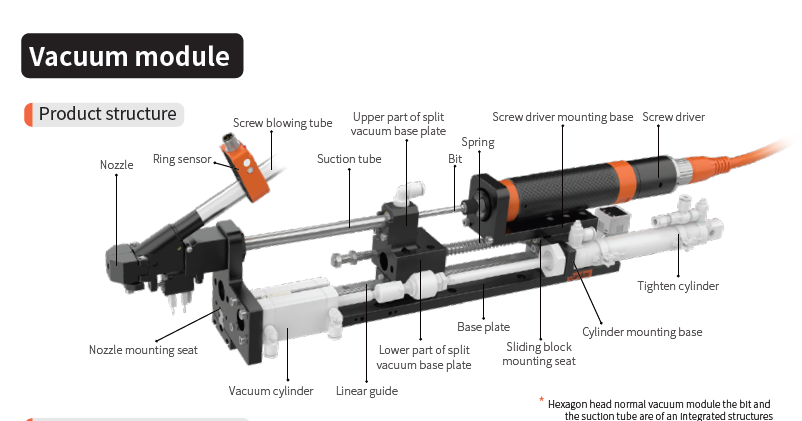

Normal Vacuum module system parameters

Screw type	Nozzle type	Weight (excluding screw drivers and cables)/kg	Maximum cap diameter/mm	Torque range /Nm
Standard/Combination screw	Normal	5.8~6.7	4~15	0.3~20
Standard/Combination screw	Swivel Arm	6~6.9	4~15
Hexagon head	Normal	6.9~7.1	11~15
Hexagon head	Swivel Arm	6.8~7.2	11~15

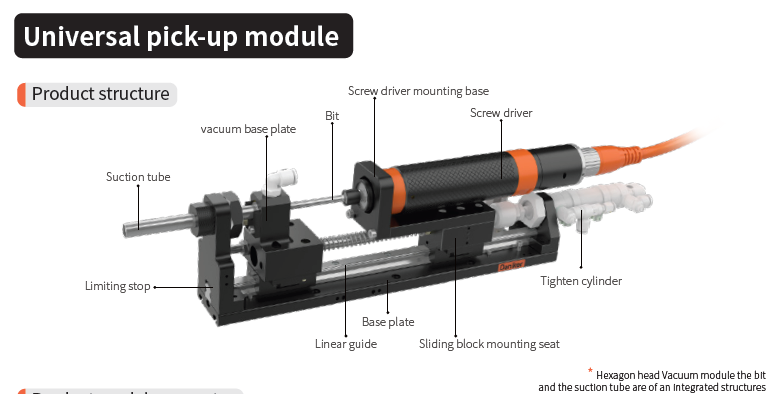

Conventional pick-up module system parameters

Screw type	Nozzle type	Weight (excluding screw drivers and cables)/kg	Maximum cap diameter/mm	Torque range /Nm
Standard/Combination screw	None	3.9~4.3	4~15	0.3~20
Standard/Combination screw	Clamp nozzle	6.4~7.4	11~15
Hexagon head	None	4.4~6.6	11~15
Hexagon head	None	4.4~6.6	15~20	20~35

* The above is the reference value, and the actual test shall prevail.
