TTC-P Wired Pulse Transducer Intelligent Screw Driver

Torque Range：1-20Nm

Equipped with pulse technology and a high-speed motor, it delivers zero-reaction-force, high-speed, and high-precision tightening, ensuring effortless operation even during prolonged use. Crafted from specialized anti-static materials, it provides comprehensive safety protection. Paired with CM series controller, it caters to manual application scenarios across multiple industries, significantly enhancing assembly quality and consistency on production lines.

Request a Quote

Product Advantages

Zero Reaction Force

Pulse mode operation allows for steady, one-handed use with minimal effort, reducing operator fatigue during extended tasks. Compact and ergonomically designed for comfort, even in prolonged, high-intensity applications.

High Rotational Speed

A high-speed motor delivers powerful performance in a small form factor, improving cycle time by up to 100% for faster production line throughput.

Anti-Static Design

Built with anti-static materials for safe handheld tightening, even in 220V high-voltage environments. *Note: Metal components must be grounded

High Precision

Standard Mode

6σ accuracy ±5% (consistent over 500,000 tightening cycles)

Pulse Mode

6σ accuracy ±7.5‒15%.

Maintains precision across modes, ensuring consistent and reliable tightening results. Torque

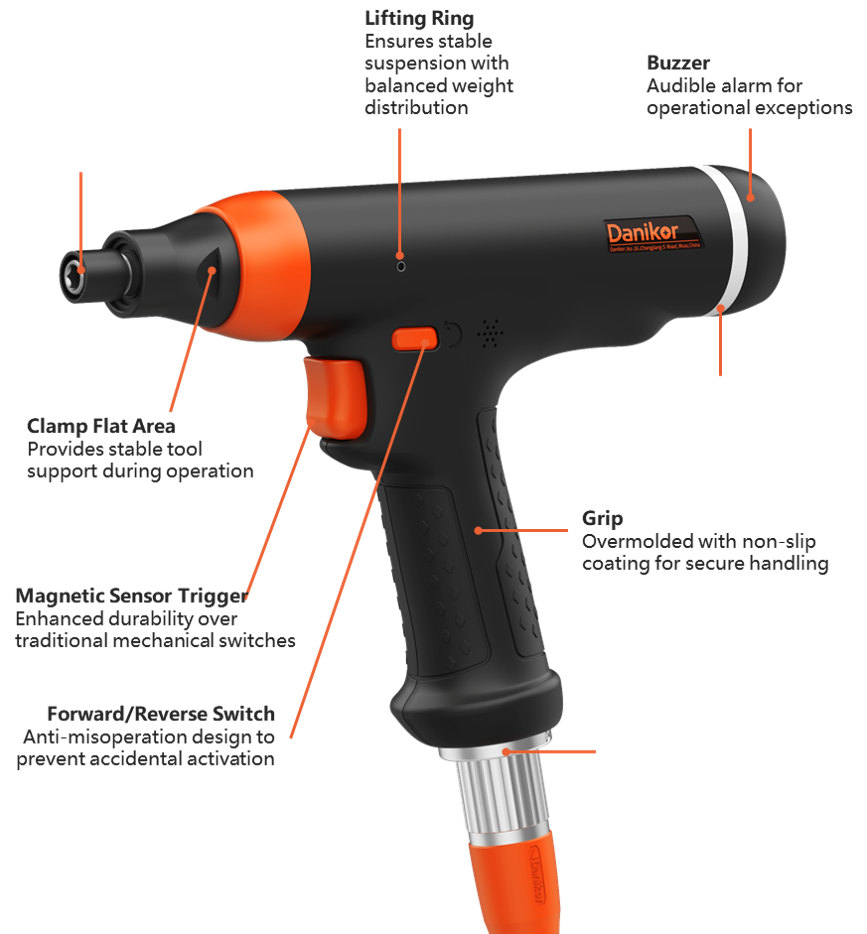

Product Structure

Product Parameters


	Model	Torque/Nm	Max Speed rpm	Grip diameter mm	Design Life	MTTF	Bit quick connector	Starting Mode
TTC-P	PTT-CPH-0020N-38-H1P-000-B	0.4-2	3000	38	>10million	>1million	HEX1/4"	Pushed/Remote
	PTT-CPH-0040N-38-H1P-000-B	0.8-4	3000	438	>10million	>1million	HEX1/4"	Pushed/Remote
	PTT-CPH-0080N-38-H1P-000-B	1.6-8	1515	38	>10million	>1million	HEX1/4"	Pushed/Remote
	PTT-CPH-0120N-38-H1P-000-B	2.4-12	1030	38	>10million	>1million	HEX1/4"	Pushed/Remote
	PTT-CPH-0200N-38-S2P-000-B	4-20	700	438	>10million	>1million	HEX3/8"	Pushed/Remote
