China Flexible Feeder Manufacturer

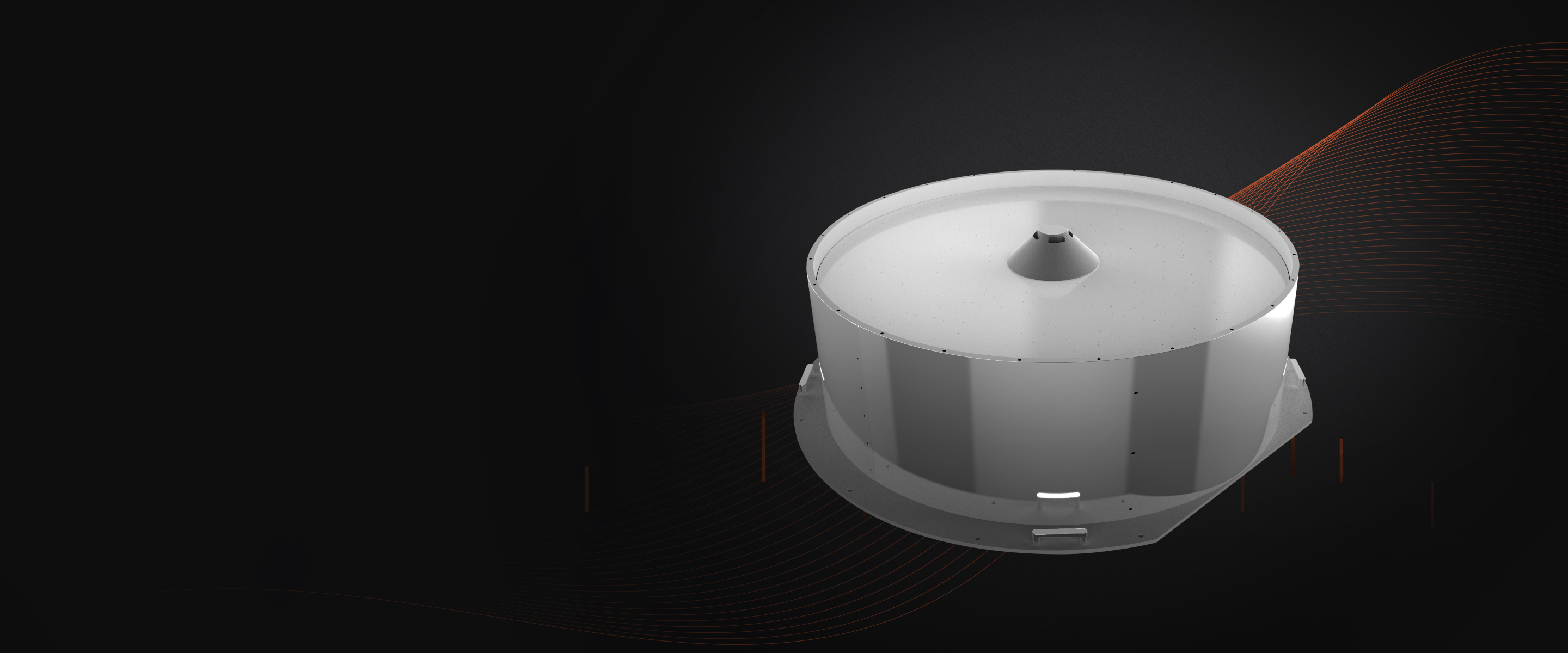

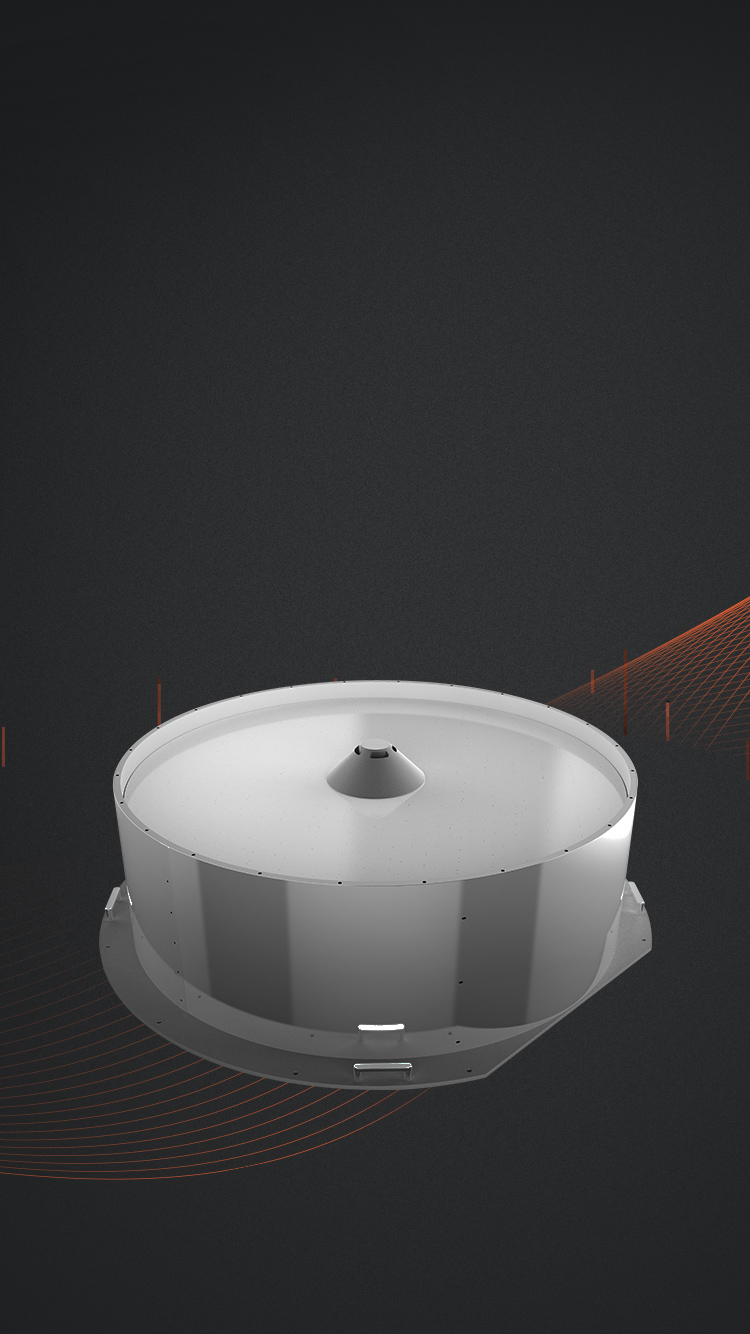

Rotary Flexible Feeder

Request a Quote

Product advantages

The bearing capacity is strong

Suitable for materials with large volume and heavy weight

1~300mm； 1~300g

Applicable to various materials

Metal, soft rubber, glass, ceramics, wood, electronic components, etc.

Flexible type change

Multi-variety universal, fast switching and material clearing.

Efficient control

Multi-area synchronous sharing, feeding/picking without interference, high feeding rhythm; Flexible configuration of action operation logic, with a variety of feeding schemes.

Parameters

Model		MTD-120-P01-B	MTD-080-P01-B	MTD-050-P01-B
Dimensions mm(LWH)		12801234428.9	880834378.9	580534328.9
Tray Dimensions mm(Diameter*Height)		1200*50	800*50	500*40
Weight		约220kg	约 170 kg	约110kg
Input voltage			AC 220V
Max current			3A
Operation mode			Rotation, shaking, vibration
Operating frequency			4~10 Hz
Equipment operating noise			< 90dB (No-load))
Max. load			7 kg
Max. size		≤300mm	≤250mm	≤50mm
Weight of a single part that can be tumbled		≤300g	≤250g	≤100g
Driver			Standard, built-in
Communication	PC interface		Modbus TCP communication
	PLC		I/O interface
	Danikor hopper		RS485/IO communication
	Customer hopper		I/O interface

Releated Cases

Automotive Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.
