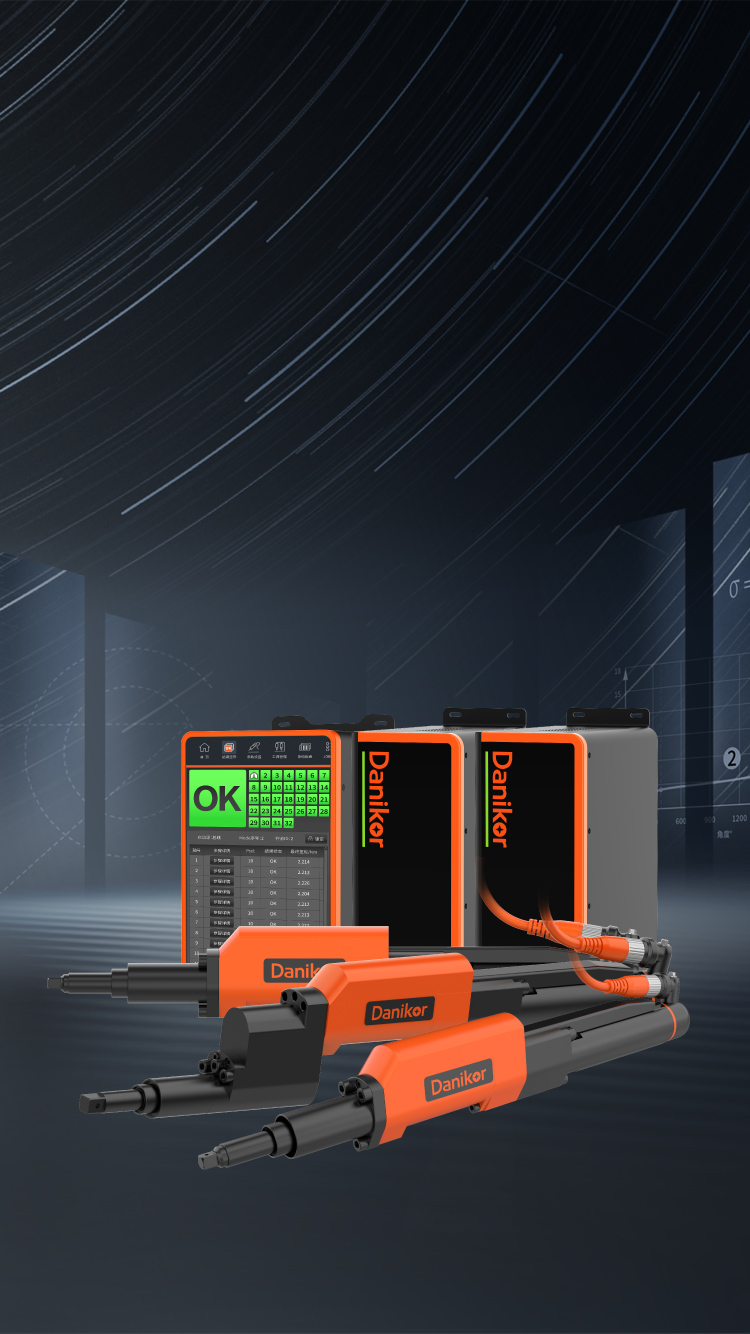

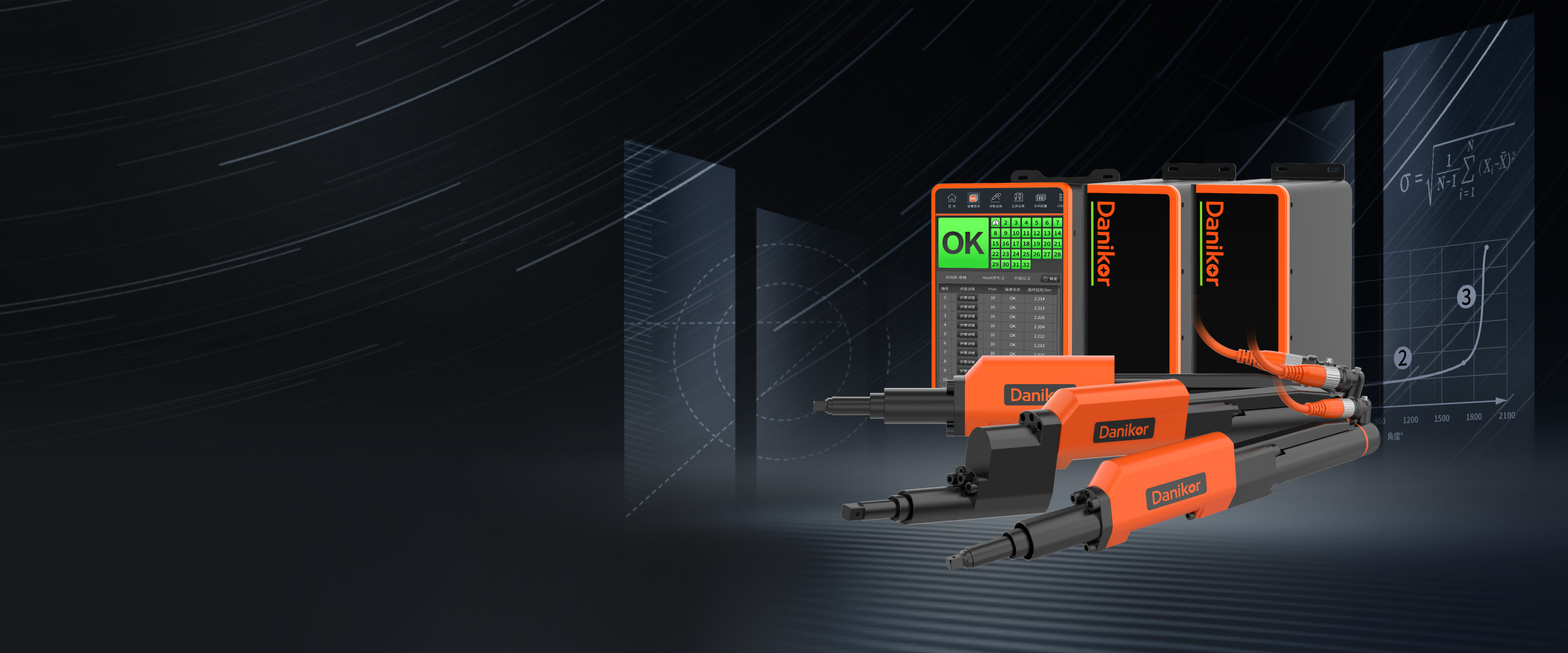

TQC Series Tightening Spindle

Torque Range：2-600Nm

The TQC series tightening spindle are purpose-built for high-end tightening applications. Equipped with dual dynamic torque sensors and algorithmic compensation control, they achieve high-precision torque control with �σ accuracy of ±�.�%. Furthermore, they enable advanced multi-axis synchronous control, closed-loop online rework, and sophisticated tightening strategies, delivering greater connection reliability for critical stations such as automotive tire assembly and powertrain systems.

Request a Quote

High Precision ‒ For More Accurate Torque Output

Dual dynamic sensors with algorithmic compensation control deliver ultra-high precision with �σ accuracy of ±�.�%, enhancing the reliability of critical connections.

Front-end Positioning for More Accurate Measurement

Dynamic torque sensors capture real-time torque changes at the front end of the spindle, minimizing transmission errors and ensuring higher measurement consistency.

Dual Sensors, Double Assurance

Two dynamic torque sensors provide mutual data backup and cross-veriﬁcation, further enhancing long-term operational reliability at critical stations.

Synchronous Tightening ‒ For More Consistent Multi-Axis Coordination

Supports synchronous control of up to �� axes, ensuring coordinated execution across all tightening steps, guaranteeing consistency and stability in connection qualityat critical workstations.

Synchronous Online Rework ‒ Quality Closed-Loop Without Line Stoppage

When a single axis encounters an issue, the systemautomatically performs rework operations without requiring a full-group redo, reducing line stoppages and repeated work, and maintaining stable production cycle times.

Uniﬁed Data Management ‒ Simpler Full-Line Traceability

Tightening data is consolidated to the main control platform, enabling centralized full-line data management and uniﬁed traceability, providing eﬃcient oversight of tightening status across all stations.

Advanced Strategies ‒ For More Reliable Critical Connections

Multiple advanced tightening strategies cover process control needs at various stages throughout the tightening process, eﬀectively improving tightening quality at critical joint points.

Yield Point Control ‒ Maximizing the Performance of Every Bolt

Real-time identiﬁcation of the yield point ensures the bolt enters its optimal stress state, enhancing long-term reliability and consistency of preload force in critical joints.

Zero-Speed Hold / Delay Control ‒ Reducing Torque Decay

Eﬀectively mitigates torque decay, further enhancing the stability and consistency of ﬁnal preload force in critical connections.

Product model parameter

	Model	Torque Range Nm	Max Speed rpm	Stroke length mm	Bit quick-change	Oﬀset distance mm	Minimum center distance mm	Sensor type	Accuracy
Straight type	PTQ-CSF-0080N-0-S10-015-B	2-8	3000	15	HEX1/4"	-	37	Dynamic	Accuracy:±2.5% Process capability Cmk≥1.67
	PTQ-CSF-0200N-0-S20-015-B	4-20	1764	15	S 3/8"
	PTQ-CSF-0350N-0-S20-050-B	7-35	1118	50	S 3/8"
	PTQ-CSF-0500N-0-S30-050-B	10-50	1950	50	S 1/2"		55
	PTQ-CSF-0900N-0-S30-050-B	20-90	1118	50
	PTQ-CSF-1400N-0-S30-050-B	30-140	608	50
	PTQ-CSF-2000N-0-S40-050-B	40-200	450	50	S 3/4"
	PTQ-CSF-3150N-0-S40-050-B	63-315	460	50			84
	PTQ-CSF-4500N-0-S40-050-B	90-450	312	50
	PTQ-CSF-6000N-0-S40-050-B	120-600	234	50
Oﬀset type	PTQ-COF-0080N-0-S10-015-B	2-8	3000	15	HEX1/4"	52.4	32
	PTQ-COF-0200N-0-S20-015-B	4-20	1764	15
	PTQ-COF-0350N-0-S20-050-B	7-35	1118	50
	PTQ-COF-0500N-0-S30-050-B	10-50	1950	50		78	47
	PTQ-COF-0900N-0-S30-050-B	20-90	1118	50
	PTQ-COF-1400N-0-S30-050-B	30-140	608	50	S 3/8"
	PTQ-COF-2000N-0-S40-050-B	40-200	450	50	HEX1/4"
	PTQ-COF-3150N-0-S40-050-B	63-315	460	50		101.2	58
	PTQ-COF-4500N-0-S40-050-B	90-450	312	50
	PTQ-COF-6000N-0-S40-050-B	120-600	234	50

Releated Cases

Automotive Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.
