In the blow-feed structure of existing blow-type screw feeders, a feed tube is usually used as the conveying channel for screws. When the screws being conveyed are relatively large, any slight bend or deformation of the tube can cause the screw tip to butt against the tube wall and jam. Likewise, an incorrectly sized tube, a material that is too soft, or an unreasonable tube-layout route can all lead to internal jamming. When the screws are small—especially when their length-to-diameter ratio is low—they tend to tumble inside the tube, directly affecting the stability of the entire automatic feeder and increasing maintenance costs. In addition, the wear resistance of the feed tube influences its service life. Therefore, the quality of the feed tube is extremely important.

Screw feed tubes must meet very strict material requirements: they must be hard and wear-resistant enough so that the internal structure does not deform, while still possessing a certain degree of flexibility so they can adapt to different on-site routing layouts. After long-term R&D, testing, and investment in high-performance tube-making equipment, Danikor now designs and manufactures every blow-feed tube according to the exact screw size, ensuring reliable operation in all screw-feeding conditions.

Advantages & Features

• Conveys screws gently without jamming

• Channel size optimized for each screw specification

• Strict material control from the source: rigid inside, flexible outside, improving wear resistance

• In-house tube-making machines govern the entire process; a seemingly simple blow-feed tube requires more than 25 steps to guarantee dimensional accuracy and performance

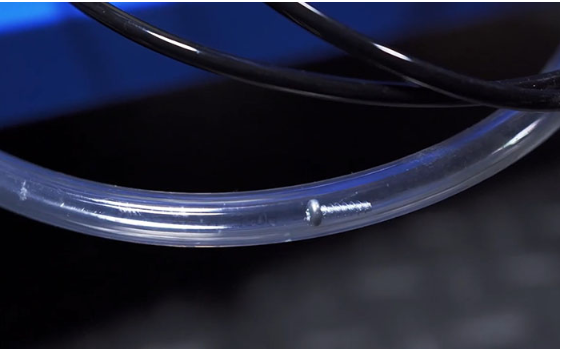

• Standard transparent tube for easy screw-position observation and fault diagnosis

• Optional high-wear or anti-static versions for special applications

• Ability to develop special-shaped tubes for unique screws or nuts, making them suitable for blow-feeding

Danikor screw feed tubes deliver a better user experience while reducing the maintenance costs caused by frequent jamming.
