Transducer Intelligent Screw Driver

TTB Transducer Intelligent Screw Driver

Torque Range: 0.02~18Nm

Designed for high-cycle industrial assembly scenarios, available in handheld and onboard versions. Featuring a compact, integrated drive design for quick deployment and easy adaptation to line layouts. Equipped with a self-developed rotational speed closed-loop control algorithm, it delivers stable tightening at high cycle rates, supports various tightening strategies and error-proofing functions to ensure consistent and reliable assembly quality, and provides a dependable assembly solution for cost-effective production lines.

Request a Quote

Features

Integrated Drive & Control

Simpler deployment, more stable operation

Integrated drive and control design eliminates the need for an external controller, reducing potential failure points, simplifying deployment, and ensuring more stable operation.

High-Speed Tightening

Faster cycle time, higher throughput

Maximum speed of 􏚴,􏚱􏚱􏚱 rpm, combined with a self-developed rotational speed closed-loop control algorithm and internal structural optimization, balances speed and stability.

Vertical Angle Monitoring

Real-time tilt prevention for more standard tightening

Built-in high-precision angle gyroscope monitors and identifies tightening tilt in real time, ensuring perpendicularity during high-speed tightening and safeguarding tightening quality.

Rich Communication Interfaces

Data acquisition enabled,quality recorded

Supports RS485 and I/O communication. Tightening data can be acquired and uploaded to the customer’s system, facilitating product quality traceability.

Intuitive, Smart, and Easy to Use

Faster changeovers, smoother operation

Built-in display shows real-time tightening status and counts; Supports 4S quick program switching and counting setup, saving time during multi-station changeovers; Compatible with socket/bit selectors for program-linked switching ‒ ideal for mixed-line a

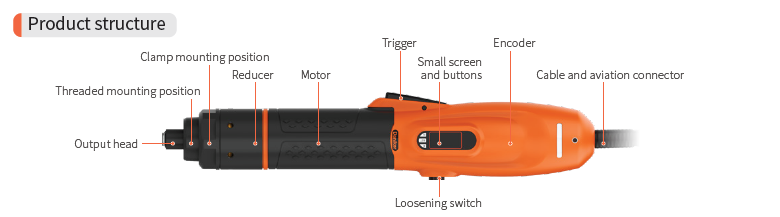

Product structure

Product model parameter

Handheld

Model	Max Torque Nm Nm	Max speed rpm rpm	Grip diameter mm	Size mm	Weight kg	Bit quick connector	Starting mode	Voltage	ccuracy
PTT-BSH-6000M-40-H1P-000-B	0.06~0.6	1800	40	299	0.95	Hex 1/4"	Trigger	24Vdc	＜Accuracy for 10%~20% of range:10% Accuracy for ≥20%~100% of range:7.5%
PTT-BSH-0015N-40-H1P-000-B	0.15~1.5	3000	40	299	1.1			48Vdc
PTT-BSH-0030N-40-H1P-000-B	0.3~3	2000	40	299	1.1
PTT-BSH-0050N-40-H1P-000-B	0.5~5	1000	40	311	1.15
PTT-BSH-0100N-44-H1P-000-B	1~10	1030	44	312	1.2
PTT-BSH-0180N-44-S2P-000-B	1.8~18	650	44	310.5	1.25	S 3/8"
PTT-BSH-6000M-40-H1D-000-B	0.06~0.6	1800	40	308	0.95	Hex 1/4"	Pushed	24Vdc
PTT-BSH-0015N-40-H1D-000-B	0.15~1.5	3000	40	308	1.1			48Vdc
PTT-BSH-0030N-40-H1D-000-B	0.3~3	2000	40	308	1.1
PTT-BSH-0050N-40-H1D-000-B	0.5~5	1000	40	314	1.15
PTT-BSH-0100N-44-H1D-000-B	1~10	1030	44	320	1.2
PTT-BSH-0180N-44-S2D-000-B	1.8~18	650	44	320	1.25	S 3/8"

Fixed

Model	Max Torque Nm	Max Speed rpm	Size mm	Weight kg	Bit quick connector	Voltage	Power	Accuracy
PTT-BSF-1800M-0-HM0-000-B	0.02~0.2	3000	152.54582.2	0.5	HM	24Vdc	300W	＜Accuracy for 10%~20% of range: ±10% Accuracy for ≥20%~100% of range: 7.5%
PTT-BSF-5000M-0-H10-000-B	0.06~0.5	1800	1664582.2	0.95	Hex 1/4"
PTT-BSF-0010N-0-H10-000-B	0.1~1	1200	1664582.2	1.1
PTT-BSF-0030N-0-H10-000-B	0.3~3	2000	1844582.2	1.1		48Vdc	600W
PTT-BSF-0050N-0-H10-000-B	0.5~5	1000	1964582.2	1.15
PTT-BSF-0100N-0-H10-000-B	1~10	1030	195.84582.2	1.2
PTT-BSF-0180N-0-S20-000-B	1.8~18	650	195.84582.2	1.25	S 3/8"
